DIMENSIONS： 450mm x 200mm x 472mm(H x W x D)
Accommodates up to 280mm VGA card.
Bottom-mounted power supply.
1 x USB 3.0 ready.
Ultimate Cooling System:
1 x 120mm fan (optional) on top to exhaust hot air
1 x 120mm blue LED fan in front to cool the HDD and VGA card
1 x 120mm fan (optional) located in the rear to exhaust hot air
Cables are hidden behind the pre-drilled motherboard tray to get better airflow.
|Model Name||Draco 207|
|Type||ATX Mid Tower|
|Color||Black (exterior) / Black (interior)|
|Side Panel||Metal+transparent arcylic|
|Max CPU Cooler Height||Up to 155mm|
|Max VGA Card Length||Up to 380mm|
|Water cooling radiato||up to 120mm|
|Motherboard Compatibility||ATX, Full ATX, Micro ATX|
|Power Supply Locations||Rear Bottom|
|External 5.25" Drive Bays||3|
|Internal 2.5" Drive Bays||Up to 3|
|Internal 3.5" Drive Bays||Up to 3|
|Draco 207||1 x USB 3.0, 2 x USB 2.0, HD Audio, Mic.|
|Draco 207S||2 x USB 2.0, HD Audio, Mic..|
|Draco 207||1x120mm LED Fan in front; 1 x 120mm Fan in rear|
|Draco 207S||1x120mm LED Fan in front|
|Available Fan Ports (option)|
|Dimensions(HxWxD)||450mm x 200mm x 472mm / 17.72 x 7.87 x 18.58 inch|
|Carton Size (H x W x D)||508mm x 237mm x 490mm|

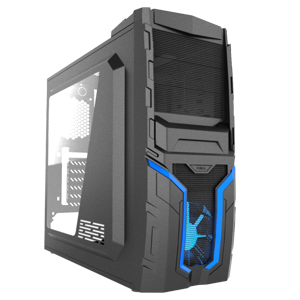

The AZZA Draco 207/ CSAZ-207 is designed for those casual gamers looking for an easy-to-build yet sturdy case. Its sleek exterior appeases the eyes while the interior packs a punch. With optional 120mm fans on the top, one 120mm blue LED fan in the front and one optional 120mm fan in the back, this case provides you with outstanding cooling. There is no need to worry about cables as they are hidden behind the motherboard tray, with nothing to obstruct air flow.
Supports VGA Cards
up to 380mm in Length.
Up to 3 x 5.25",
3 x 2.5" and 3 x 3.5"
System: Total of 3 Fans.
