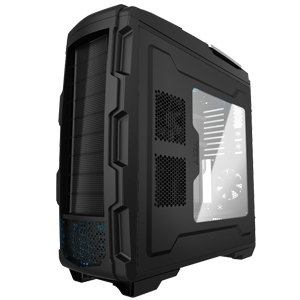

GT 1


DIMENSIONS:620mmx250mmx590mm(H x W x D)



● Reversible motherboard tray can be rotated 180 degrees to orient graphics cards at the top, next to the top fan to enhance the efficiency of heat dissipation.

● An ideal vertical airflow is generated to offer exceptional system cooling: with the power supply installed at the front bottom, 1x140mm stock fans located at the bottom blast cool air upward with the heat exhausted via the 1x230mm top fan.

● Exceptional Cooling System:

2x230mm fans located on the top to exhaust hot air.

2x140mm fans located at the bottom to take in cool air.

2x120mm fan located on side panel for cooling HDD.

1x120mm fan locate in the rear to exhaust the hot air.

Top Mount Radiator: supports up to 480mm radiator.

Bottom Mount Radiator: support up to 240mm radiator.

● 1x Easy Swap HDD tray (up to 5) for easy, tool-less assembly of HDD.

● Accommodates graphics cards up to 400mm in length.

● Power supply can be located at either front or rear bottom, also supports dual-power supply.

Model Name GT 1
Model Number CSAZ-GT1
Type ATX Full Tower
Color Black/Black(inside chassis)
Material 0.8mm SECC
Side Panel Window Yes
With Power Supply No
CPU Cooler Compatibility up to 200mm
Motherboard Compatibility XL-ATX,E-ATX, Full ATX, Micro ATX
Power Supply Locations Rear Bottom
External 5.25" Drive Bays 9
Internal 3.5" Drive Bays 7
Easy Swap 2.5" SSD Slot 1(5 option)
Easy Swap 3.5" HDD Slot 1(5 option)
Expansion slots 9
Front Ports 2x USB 3.0, 2xUSB 2.0, HD Audio/ Mic
Cooling System
230mm Fan 1x230mm Blue LED Silent Fan(24DBA)
140mm Fan 1x140mm Silent Fan(19DBA)
120mm Fan 1x120mm Fan in Rear, 1x120mm on The Side for HDD
Physical Specs
Dimensions(HxWxD) 24.4"x9.8"x23.2"(620mmx250mmx590mm)
Weight 30 lbs

Tom's HARDWARE 2015/09/15

Azza GT1 PC Case Review

  • * Optimum cooling for GPU; Ideal Aero dynamical airflow
    * Exceptional cooling system; Total 4 fans
    * Easy SWAP slot for 3.5" HDD and 2.5" SSD
    * Maximum capacity water cooler
    * Support 400mm VGA card
    * USB3.0 ready

  • Max Capacity Water Cooling
    The array of attentive features includes its capacityto house a 480mm water cooling radiator, the longestavailable in the industry.

  • Reversible Motherboard Tray
    Place the motherboard tray in reverse, the ventilator is now in close proximity to your VGA card.

  • Support longest VGA card
    It is the first in its class to hodl VGA ards up to 400mm.
    Maximim compatiblity with motherboard allows for installation of XL-ATX, E-ATX, Full ATX and Micro ATX.

  • Supports PSUs
    up to 230mm in length.

  • Ideal Aerodynamic Airflow
    Genesis 9000 is engineered with the power supply installed in the front bottom so that 2*140mm mid- and rear-bottom fans can supply gusts of wind blasting upward removing excess heat via the top 2*230mm fan.
    >This design generates an uniterrupted vertical airflow that allows air to flow in a straight line from bottom to top, providing optimum cooling for the entire system.
