DIMENSIONS:118x69x18mm (HxWxD)

Parts list:

▪1x LUMI box

▪1x 12V power cable

▪1x RGB Sync cable

▪1x USB 2.0 cable

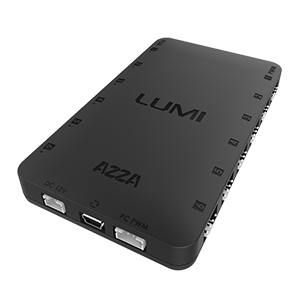

▪ Our LUMI control box acts as a control center for all our RGB peripherals, such as the HURRICANE RGB fan, RGB light strip, and the RGB light board.

▪ The LUMI allows you to customize and control the RGB lighting to your heart’s desire though a mobile app interface.

▪ The LUMI mobile app is available for download free of charge for Android and iOS devices.

Model Name LUMI
Model Number LUAZ-001
Description RGB LED product controller
Wireless Bluetooth Core specification v4.0 Volume 6
Input USB 2.0 port x 1
External RGB control port x 1
Supply Voltage DC 5V and DC 12V
Output DC 12V RGB LED control port x 6
DC 12V PWM FAN control port x 6

  • ▪ Sync fan speed with Motherboard.
    1.Connect LUMI BOX to MB with PWM cable.
    2.Select the SYNC button to allow your motherboard to control fan speeds via PWM.
