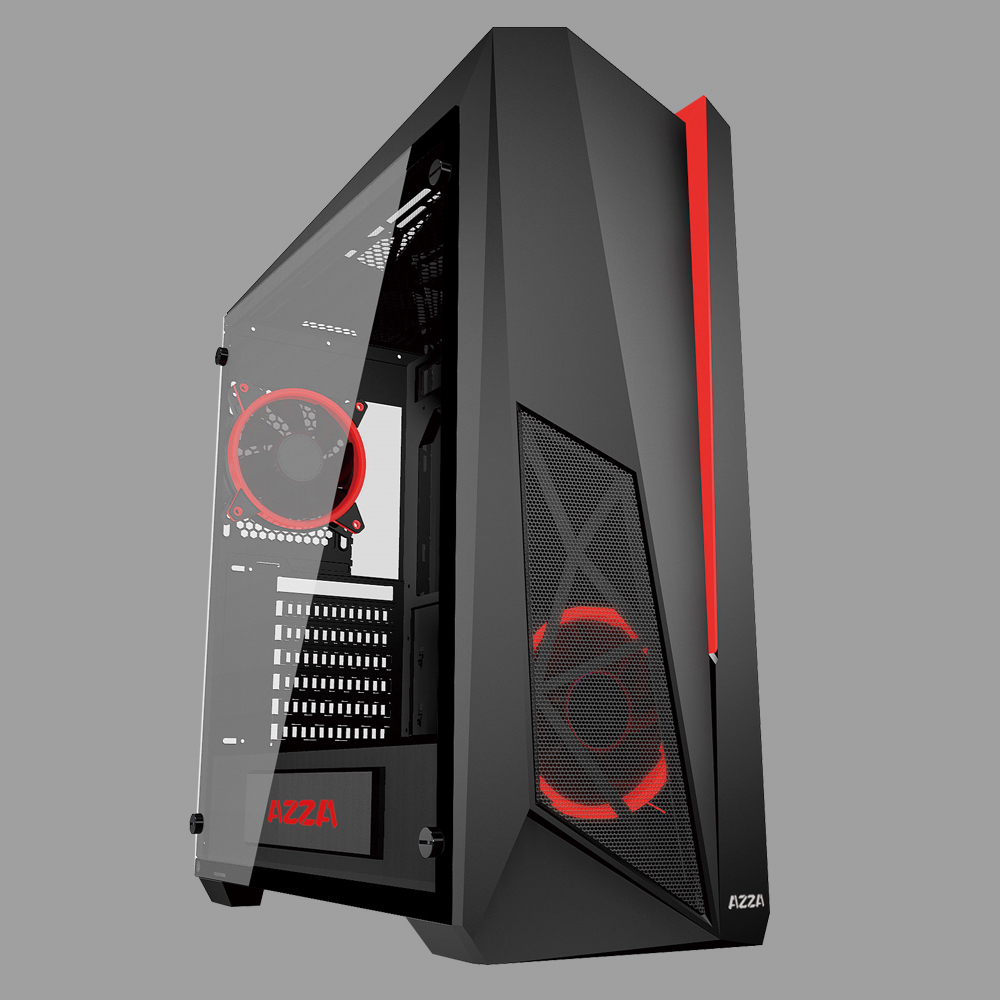

Thor 320

PRODUCT SPECIFICATIONS

DIMENSIONS:538mm x205mm x 465mm (H x W x D)

COLOR:Black

RGB light effects:

‧2x AZZA RGB fans

‧RGB logo plate、RGB LED front panel、RGB LED top panel

‧All RGB light effects controlled by RF Remote

PRODUCT INFORMATION

‧Supports up to 380mm Video cards.

‧High-quality tempered glass side panel allows for clear visuals to inner components.

Available Fan Ports:

3x120mm or 2x140mm fan on the top

3x120mm or 2x140mm fan ports in the front

1x120mm RGB fan port in the front (installed)

1x120mm RGB fan port in the rear (installed)

‧Supports 360mm water cooling radiator.

Model Name Thor
Model Number CSAZ-320
Specs
Type ATX Mid-Tower
Color Black (exterior)/Black (interior)
Side Panel Tempered Glass With Rubber Mounts
Max CPU Cooler Height Up to 155mm
Max Video Card Length Up to 380mm
Water cooling radiator Front: up to 280mm; Top: up to 360mm
Motherboard Compatibility ATX, Micro ATX
Power Supply Locations Rear Bottom
RGB light effects RGB logo plate
RGB Light on Front and Top panels
2x120mm RGB fans
Expansion
External 5.25" Drive Bays: 0
Internal 2.5" Drive Bays Up to 6 (2 with metal tray)
Internal 3.5" Drive Bays Up to 2
Expansion slots 7
Front Ports 2 x USB 3.0, HD Audio
Cooling System 1x120mm RGB fan in front
1x120mm RGB fan in Rear
Available Fan Ports
Front 3x120mm or 2x140mm
Top 3x120mm or 2x140mm
Rear 1x120mm
Physical Specs
Dimensions(HxWxD) 538x205x465mm / 21.2x8.1x18.3 inch
Weight 8.01 kg / 17.7 lb
Carton Size (H x W x D) 555x291x627mm

OverclockZoneTV 2018/3/1

Azza Thor 320 PC Case Review


  • The Thor 320 is the hottest new case in our lineup.With a sleek and sturdy tempered glass side panel, the case allows for easy viewing of the inner components. For those RGB fanatics, the Thor 320 includes two of our AZZA RGB fans, an RGB strip on the front paneland top panel, and an RGB AZZA logo on the power supply chamber, all fully customizable, allowing you to make this case truly yours.All RGB light devices are controlled by an RF Remote.The synchronized RGB lighting effects will make your already-unique case even more attractive.
    TheThor 320 supports a 360mm water cooling radiator on the top, as well as a 280mm one on the front.Removable (magnetic) dustproof nets are located on the front and top panel, with an iron net on the bottom of the chassis.
    The Thor 320supports the longest video cards in the market, up to 380mm long. The power supply is housed inside its own isolated chamber, preventing the residual heat from the power supply from affecting the other components.


  • Supports Video cards
    up to 380mm in length.


  • ‧Two multifunctional brackets support
    3.5" HDD or 2.5" SSD( A、B)
    ‧Two multifunctional brackets support
    2.5" SSD( C、D)

<

  • ‧Two mounting holes support
    2.5" devices.( E、F)


  • Supports three 120mm or 140mm fan
    up to 280mm in height.

<

  • Supports two 140mm or 120mm fan
    up to 360mm in length.
