‧Supports up to 370mm long video card.
‧High-quality tempered glass side panel allows for clear visuals to inner components.
‧Available Fan Ports:
3x120mm or 2x140mm Fan ports in the front
2x120mm or 2x140mm Fan ports on the top
1x120mm Fan port in the rear
‧Supports radiators up to 280/360mm in the Front and up to 240/280mm on the Top
‧Model options depending on the matching fan difference.
|Model Name||RAVEN 420|
|Model Number||CSAZ-420DF1 /CSAZ-420LF/ CSAZ-420F / CSAZ-420|
|Type||ATX Mid Tower|
|Color||Black (exterior)/Black (interior)|
|Side Panel Window||Left Side panel: Tempered Glass with rubber mounts|
|Max CPU Cooler Height||Up to 155mm|
|Max video Card Length||Up to 370mm long video card|
|Power Supply||Not Included|
|Motherboard Compatibility||ATX、Micro ATX|
|External 5.25" Drive Bays:||0|
|Internal 2.5" Drive Bays||Up to 6|
|Internal 3.5" Drive Bays||Up to 2|
|Top Ports||Power button, reset button, HD Audio, USB 3.0 x 2|
|Case Dimension (HxWxD)||480x205x425mm/ 18.9x8.1x16.7 inches|
|Tempered Glass Sides Window||High-quality tempered glass side window allows for clear visuals to inner components|
|Addressable RGB Light Effects(CSAZ-DF1 only)||Addressable RGB light fan in the rear. All Addressable RGB light devices sync with the motherboard, allowing the motherboard software to directly control the lighting.|
|Available Fan Ports||3x120mm or 2x140mm Fan ports in the front|
|2x120mm or 2x140mm Fan ports on the top|
|1x120mm Fan port in the rear|
|The available fan included||CSAZ-420DF1:Digital RGB fan|
|CSAZ-420F:Front - 1 x Black fan ; Rear - 1 x Black fan|
|CSAZ-420 :Case only|
|Water Cooling||Supports radiators up to 280/360mm in the Front|
|Supports radiators up to 240/280mm on the Top|
|Dust filters||Removable (magnetic) dustproof net on the top, iron net on bottom of chassis.|
|Power Supply Support||Bottom mounted ATX Power Supply|
Azza PC Case Review

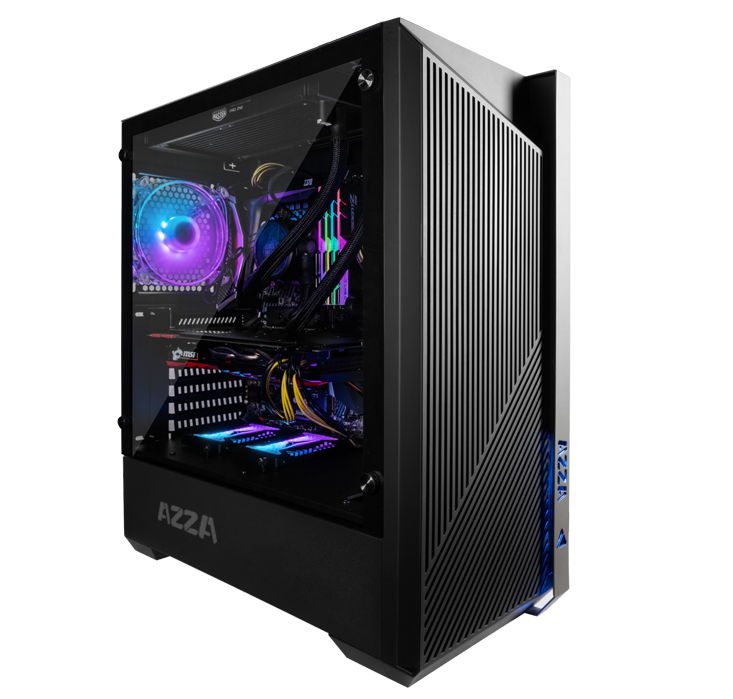

As black as a raven, the Raven 420 is the newest addition to our mid-tower lineup.
This case offers everything you need for a variety of builds, supporting ATX and micro ATX motherboards.
It can support some of the longest video cards on the market, up to 370mm long, so it is able to accommodate almost any build you throw at it.
With a high-quality tempered glass side panel, you can show off your aesthetic inner components.
With water cooling support up to 280/360mm on the front and 240/280mm on the top, you can be sure that this case will fit all of your cooling needs.
The simple black design with the metal finish on the front gives a unique and modern aesthetic, and is ideal for those looking for a case that isn’t too loud in its appearance.

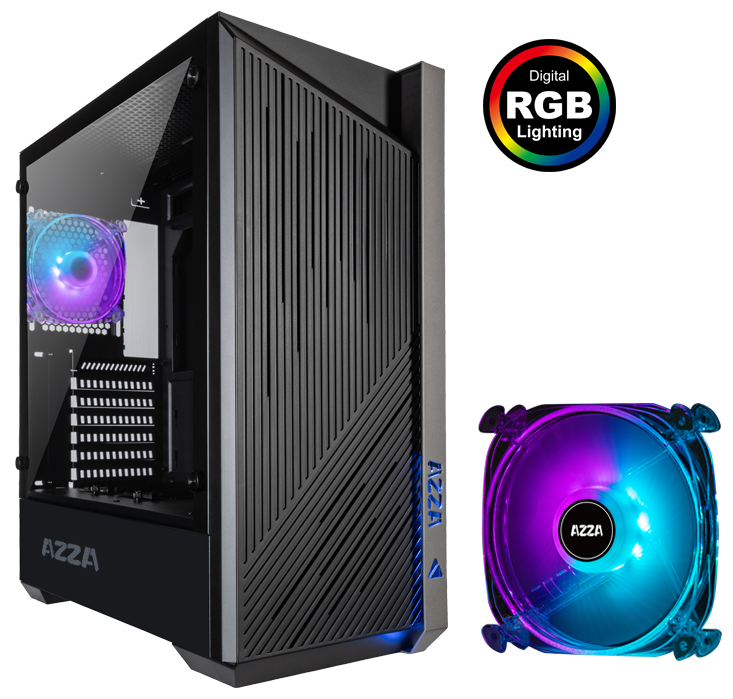

( Raven 420 chassis with 120mm Digital RGB fan)
Digital RGB fan:
Connect with compatible digital RGB devices or compatible digital RGB m otherboard.
( Raven 420 chassis with 120mm Red Led fan)
Red Led fan:
Connect with Power Supply.
( Raven 420 chassis with 120mm Black fan)
Connect with Power Supply.
( Raven 420 chassis without fan)
make what kind of Raven 420 you like, just built it.

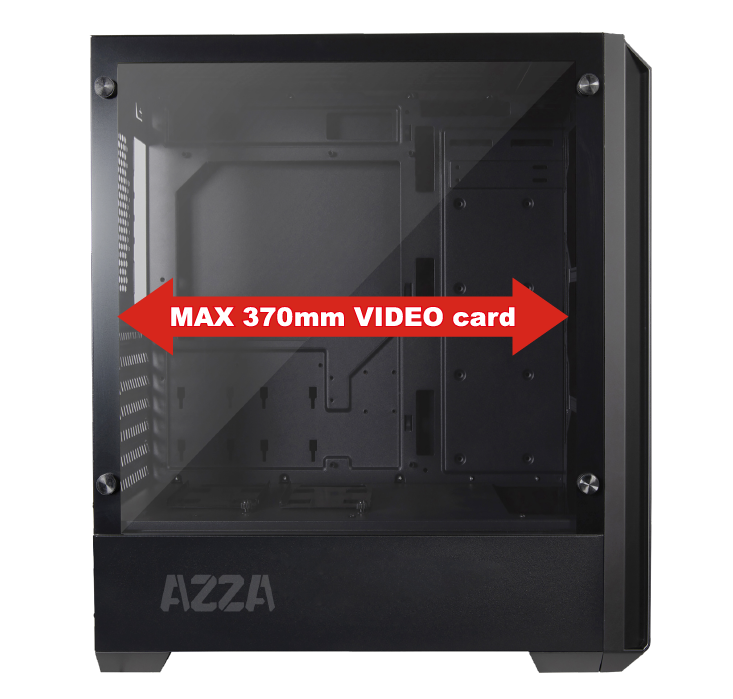

Supports VIDEO cards
up to 370mm in length.
Two brackets support 2.5" devices.
Black fan:( A、B、C、D)
Two mounting holes support 2.5" devices.( E、F)
Two multifunctional trays support 3.5" HDD or 2.5" SSD.( G、H)
Supports up to 3 x 120mm or
2 x 140mm fan up to 360mm
water cooling radiator in height.
Supports up to 2 x 120mm or
2 x 140mm fan up to 280mm
water cooling radiator in length.
