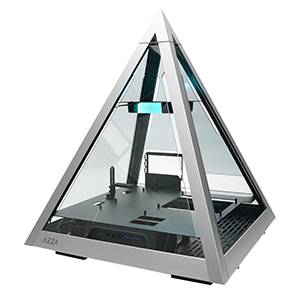

PYRAMID 804L
PRODUCT SPECIFICATIONS
DIMENSIONS：589mm x 490mm x 490mm (H x W x D)
COLOR：1.5~2.0mm SPCC+ 2.5mm Aluminum
PRODUCT INFORMATION
‧Supports radiator up to 360mm on the botton.
‧Available Fan Ports:
1 x 120mm or 1x140 fan ports in the top
((1 x 120mm Hurricane II Digital RGB Fan included )
5 x 120mm fan ports on the bottom
| Model | |
|---|---|
| Model Name | PYRAMID 804L |
| Model Number | CSAZ-804L |
| Specifications | |
| Type | ATX Tower |
| Color | 1.5~2.0mm SPCC+ 2.5mm Aluminum |
| Side Panel Window | 4 sides of top panel are tempered glass |
| Max.CPU Cooler Height | Up to 95mm |
| Max.GPU Dimensions: | L=330 mm /W=150 mm /H=70 mm (Horizontal) |
| Power Supply | ATX |
| Motherboard Compatibility | <305x280mm E-ATX 、ATX、Micro ATX、Mini-ITX |
| Expansion | |
| External 5.25" Drive Bays: | 0 |
| Internal 2.5" Drive Bays | Up to 2 |
| Internal 3.5" Drive Bays | Up to 1 |
| (Convertible with 2.5"SSDx1 ) | |
| Expansion slots | 3 |
| Side Ports | 2xUSB 3.0、 HD Audio、Type C、Metal Power Button |
| Physical Specs | |
| Metal Chassis dimensions(HxWxD) | 558x490x490/22x19.3x19.3 inch |
| Dimension with Case Stand(HxWxD) | 589x490x490mm/23.2x19.3x19.3 inch |
| Weight | 14.1kg /31.1lbs |
| Features | |
| Tempered Glass on Four Sides Window | High-quality tempered glass side window allows for clear visuals to inner components |
| Available Fan Ports | 1 x 120mm or 1x140 fan ports in the top(1x 120mm Hurricane II Digital RGB Fan included ) |
| 5x120mm Fan port on the bottom | |
| Water Cooling | Supports radiator up to 240mm on the bottom left and 360mm on the bottom right. |
| CPU Air Coolers <95mm. | |
| Isolated Chamber | ATX Power supply inside its own isolated chamber,preventing its heat from affecting other components |
| Easy Installation Cooler | A pre-cut hole for easy installation of CPU Cooler, eliminating the need to remove the motherboard |
| Accessories | 20cm PCI-E 3.0 extension cable for VGA card(Support EATX、ATX MB) Adjustable video card holder |
< -
(1)motherboard mount
(2)Pre-cut hole for CPU cooling
(3)Power cord management hole
(4)Water radiator management hole
-
(I) 2.5" SSD spring bolt tray: Supports up to 2.5" SSD x 2
(II) 3.5" HDD spring bolt tray: Supports 3.5 HDD x 1
(also compatible with a 2.5" SSD)
Supports up to 3 x 120mm fan or 360mm radiator on the hard drive bay
< -
200mm PCI-E 3.0 Cable(Support EATX、ATX Motherboard)
< -
Hurricane II Digital RGB Fan Installation For Motherboard
Connecting a strip to an incorrect connector can potentially cause damage to the LED strip, due to the RGB, and Digital RGB connectors providing different voltages .
Our digital RGB devices are WS2812B-compliant. Each fan contains 18 digital/addressable LED diodes. The WS2812B standard supports up to 60 diodes at the maximum for a single header, so please do not daisy-chain more than 3 digital RGB fans together.
