‧Supports up to 300mm long video card.
‧High-quality tempered glass side panel allows for clear visuals to inner components.
‧Available Fan Ports:
3x120mm Fan ports in the front
2x120mm Fan ports on the top
1x120mm Fan port in the rear
(1 x 120mm Black Fan included for model CSAZ-110F only)
(1 x 120mm RGB Fan included for model CSAZ-110RF1 only)
(1 x 120mm built-in automatic lighting mode digital RGB Fan included for model CSAZ-110ADF only)
‧Supports radiators up to 240mm in the Front
|Model Name||LUMINOUS 110|
|Model Number||CSAZ-110 /CSAZ-110F/ CSAZ-110RF1 / CSAZ-110ADF|
|Type||Micro ATX Mid Tower|
|Color||Black (exterior)/Black (interior)|
|Side Panel Window||Left Side panel: Tempered Glass with rubber mounts|
|Max CPU Cooler Height||Up to 165mm|
|Max video Card Length||Up to 300mm long video card|
|Power Supply||Not Included|
|Motherboard Compatibility||Micro ATX|
|External 5.25" Drive Bays:||0|
|Internal 2.5" Drive Bays||Up to 6|
|Internal 3.5" Drive Bays||Up to 2|
|Top Ports||Power button, reset button, HD Audio, USB 3.0 x1,USB 2.0 x2|
|Case Dimension (HxWxD)||397x209x435mm/ 15.6x8.2x17.1 inches|
|Tempered Glass Sides Window||High-quality tempered glass side window allows for clear visuals to inner components|
|RGB Light Effects||RGB AZZA logo on the front panel and controlled by the LED button on the top of front panel.|
|1x120mm RGB fan on the rear, controlled by the motherboard (CSAZ-110RF1 only).|
|1x120mm built-in automatic lighting mode digital RGB Fan on the rear (CSAZ-110ADF only).|
|Available Fan Ports||3x120mm Fan ports in the front|
|2x120mm Fan ports on the top|
|1x120mm Fan port in the rear|
|(1 x 120mm Black Fan included for model CSAZ-110F only)|
|(1 x 120mm RGB Fan included for model CSAZ-110RF1 only)|
|(1 x 120mm built-in automatic lighting mode digital RGB Fan included for model CSAZ-110ADF only)|
|Water Cooling||Supports radiators up to 240mm in the Front|
|Dust filters||Removable (magnetic) dustproof net on the top, iron net on bottom of chassis.|
|Power Supply Support||Bottom mounted ATX Power Supply|

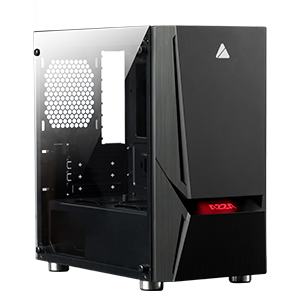

Azza PC Case Review
The Luminous 110 midtower case is what we would call a no-nonsense case. It’s got all the standard features that one would need for a gaming rig, plus some extra goodies. The case is minimal with the RGB, with an RGB logo plate on the front panel, controllable through a push button on the top. The 110 boasts a high quality and durable tempered glass side panel, so that the components of the case can be shown off for all to see.
The case supports video cards up to 290mm long, and has support for water cooling options as well.
The power supply shroud is isolated from the rest of the case, reducing the amount of heat from the power supply from spreading to other components. The Luminous 110 is a great budget midtower for anyone who just wants a functional and attractive case without too many bells and whistles.
( LUMINOUS 110 chassis with 120mm built-in automatic lighting mode digital RGB fan)
Built-in automatic lighting mode digital RGB fan:
Connect with Power Supply:Molex connector.
( LUMINOUS 110 chassis with 120mm RGB fan)
Connect with compatible RGB devices or compatible RGB motherboard.
( LUMINOUS 110 chassis with 120mm Black fan)
Connect with Power Supply.
( LUMINOUS 110 chassis without fan)
Make what kind of LUMINOUS 110 you like, just built it.
▪Supports VIDEO cards
up to 300mm in length.
▪Two brackets support 2.5" devices.
▪Two mounting holes support 2.5" devices.
▪Two multifunctional trays support 3.5" HDD or 2.5" SSD.
▪Supports up to 3 x 120mm fan or 240mm
water cooling radiator in height.
▪Supports up to 2 x 120mm fan
▪Move HDD cage to install the fan on the front panel.
▪Move HDD cage to install the Radiator and fan on the front panel.
