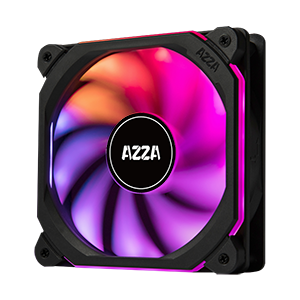

1 X PRISMA DIGITAL RGB FAN 120mm + Digital RF Remote (Optional)

產品規格

尺寸:120x120x33mm(HxWxD)

顏色:Black

配件:

1 x Prisma RGB 跑馬燈風扇

1 x RF 遙控器

PRODUCT INFORMATION

▪ATTRACTIVE –With Vibrant Digital RGB lighting and a unique Square design with individually addressable RGB LED diodes (5V), the PRISMA Digital RGB Square Fan is an attractive lighting option to any setup. WS2812B-compliant.

▪ENHANCED COOLING –Our fan blades will improve cooling performance with their unique design.

▪QUIET – Rubber pads are mounted on all four corners of the fan, offering improved performance over standard fans by offering less vibration, less noise, and less turbulence.

▪SYNC DIGITAL RGB – By plugging the AZZA PRISMA digital RGB square fan into a motherboard/lighting controller that is compatible with addressable RGB lights, the lighting and fan speeds can be controlled directly.

Model Name Prisma Digital RGB
Model Number FFAZ-12DRGB-011/FFAZ-12DRGB-211 (Include RF Remote)
Rating Voltage DC12V (Fan) DC5V (LED)
Rated Voltage DC6.0-13.8V (Fan) DC4.5-5.3V (LED)
Start-up Voltage DC6V (Fan) (ON/OFF) DC4.5V (LED) (ON/OFF)
Rated Currend Max: 240A (Fan) Max: 1080mA (LED)
Life Expectancy 40000 hrs ,25℃
Bearing Type Hydro Bearing
Fan Speed 600 RPM
Connector 4PIN PWM
4-1PIN Digital WS2812B RGB:Male & Female
Fan Dimensions 120x120x33mm
Weight 0.16kg
<
  • Cylindrical Lighting
    Instead of a tiny ring of light,why not light up the whole thing?
    With a frame constructed of acrylic material, the PRISMA DIGITAL RGB fan allows for Digital RGB lightning to illuminate evenly throughout the entire frame, giving you a clean Digital RGB aesthetic.

  • Silence
    Rubber pads are mounted on all four corners of the fans, offering improved performance over standard fans by offering less vibration, less noise, and less turbulence

<
  • PRISMA Digital RGB SQUARE Fan Installation For Motherboard
    Connecting a strip to an incorrect connector can potentially cause damage to the LED strip, due to the RGB, and Digital RGB connectors providing different voltages .
    Our digital RGB devices are WS2812B-compliant. Each fan contains 18 digital/addressable LED diodes. The WS2812B standard supports up to 60 diodes at the maximum for a single header, so please do not daisy-chain more than 3 digital RGB fans together.
